A project for Clackamas County in collaboration with Tallwood Design Institute. We were tasked with developing schemes focused around the use of mass timber in a courthouse, to be used in a cost analysis process to test the plausibility of an entirely mass timber structure in their design process. Our scheme involved the use of mass timber in the form of glue-laminated post and beam construction, CLT floorplates, and CLT structural cores, totaling 231,668.5 cubic feet of wood products sequestering 5,899 metric tons of CO2. Our scheme went one step further exploring a semi-conditioned corridor, utilizing the principle of thermally active surfaces to create ‘radiant alcoves’ for comfort, eliminating 31.3% of each floor’s conditioned area in order to further combat climate change.

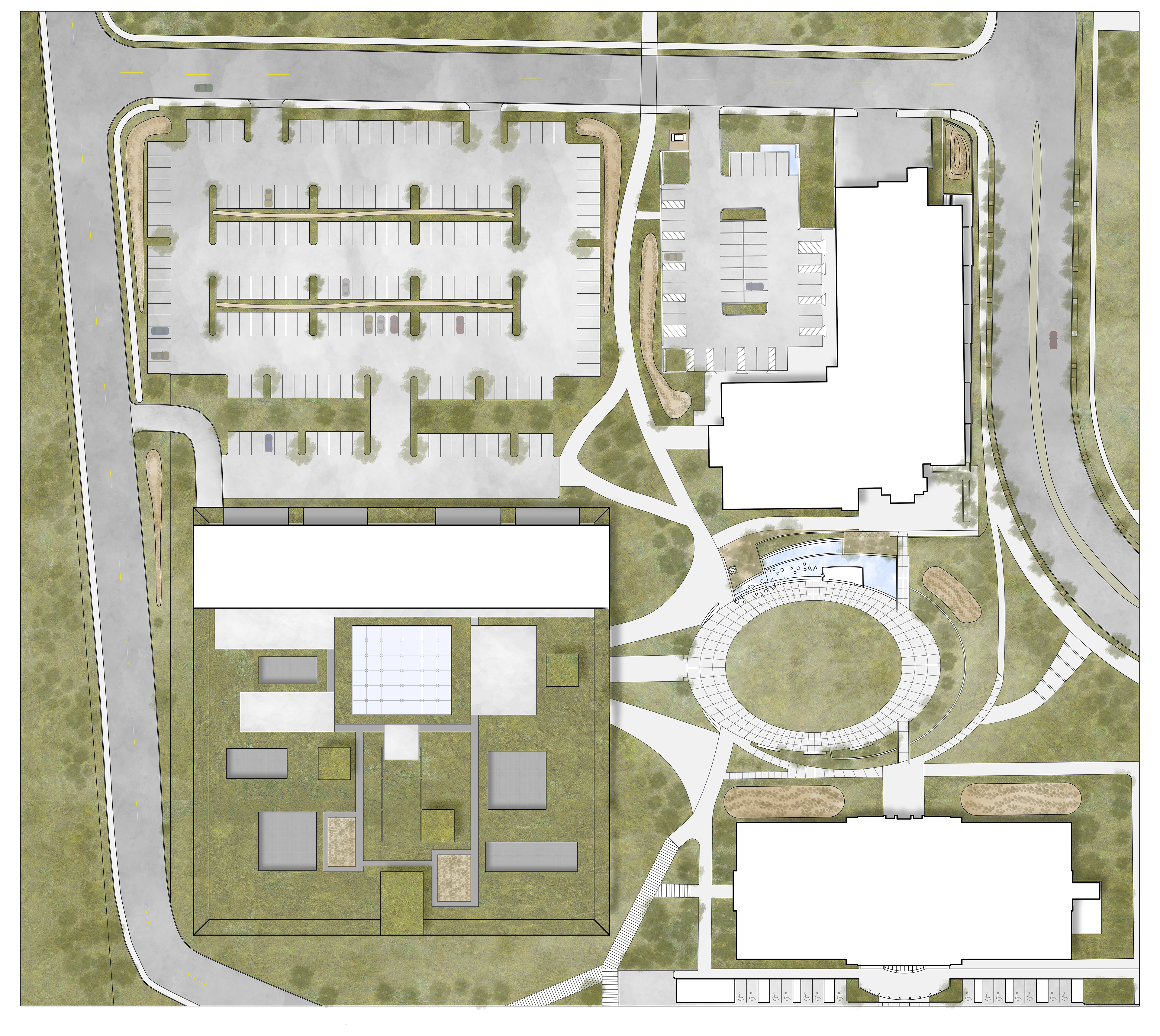

site plan

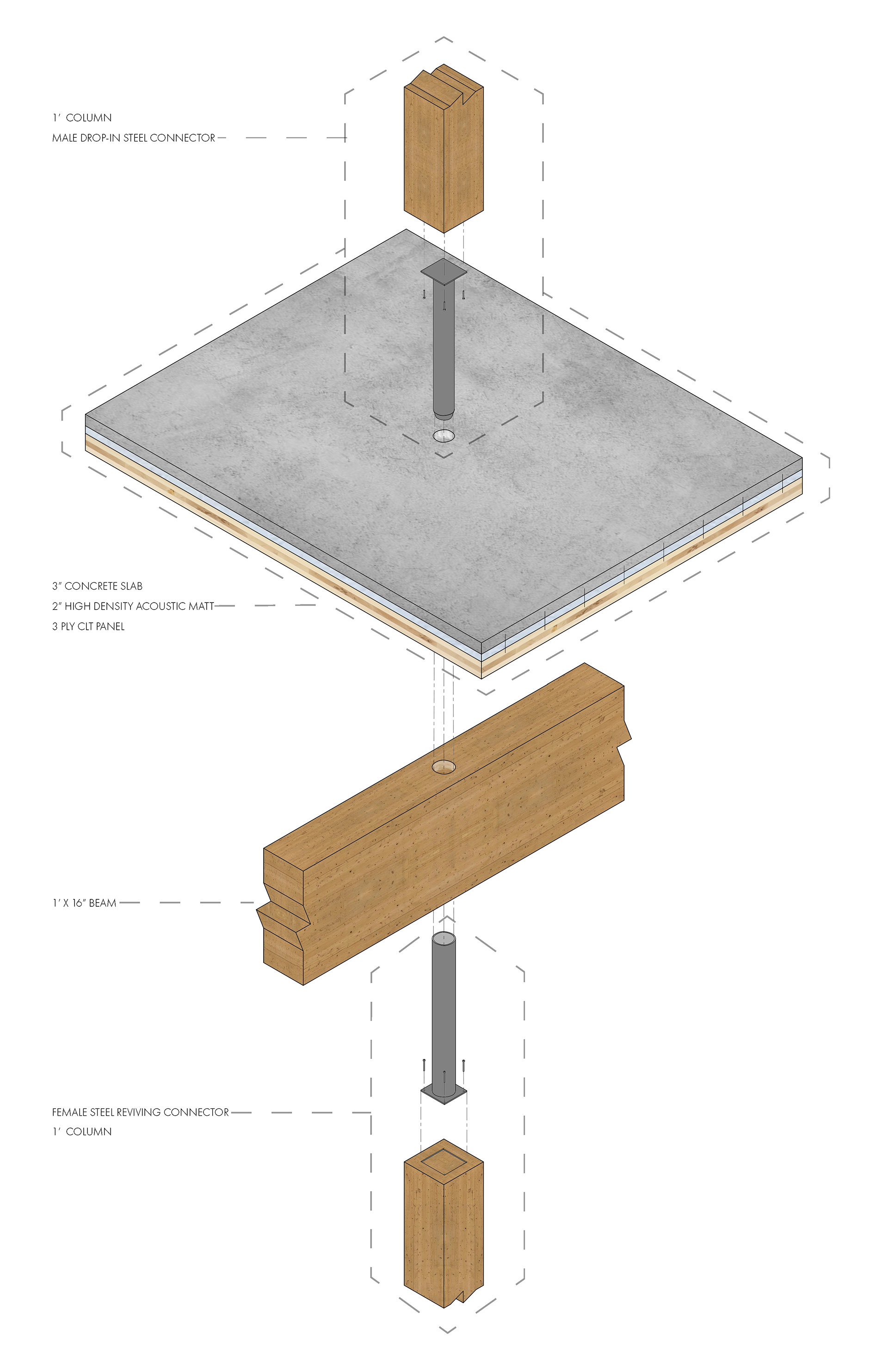

CLT connection

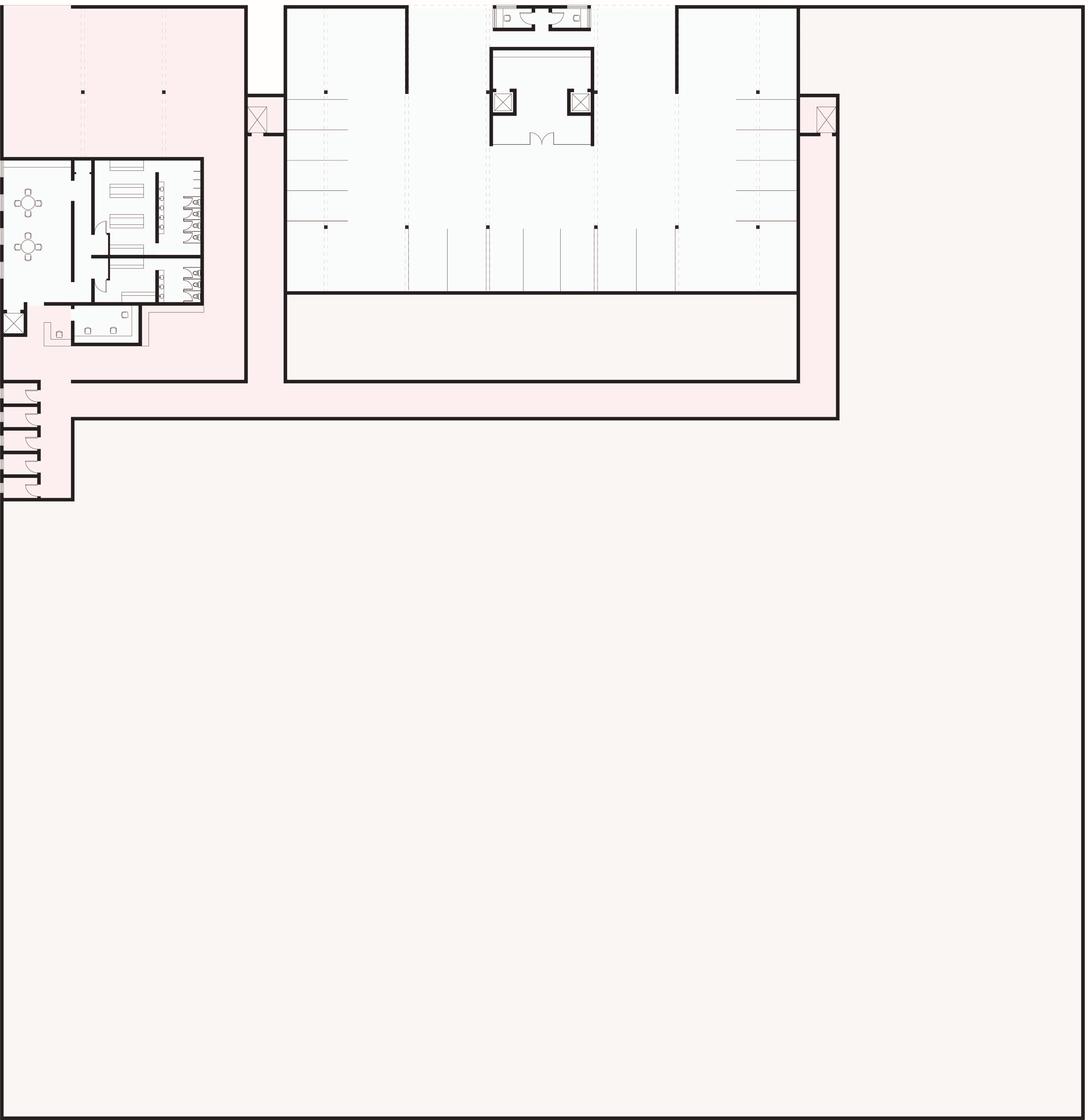

secure parking + holding

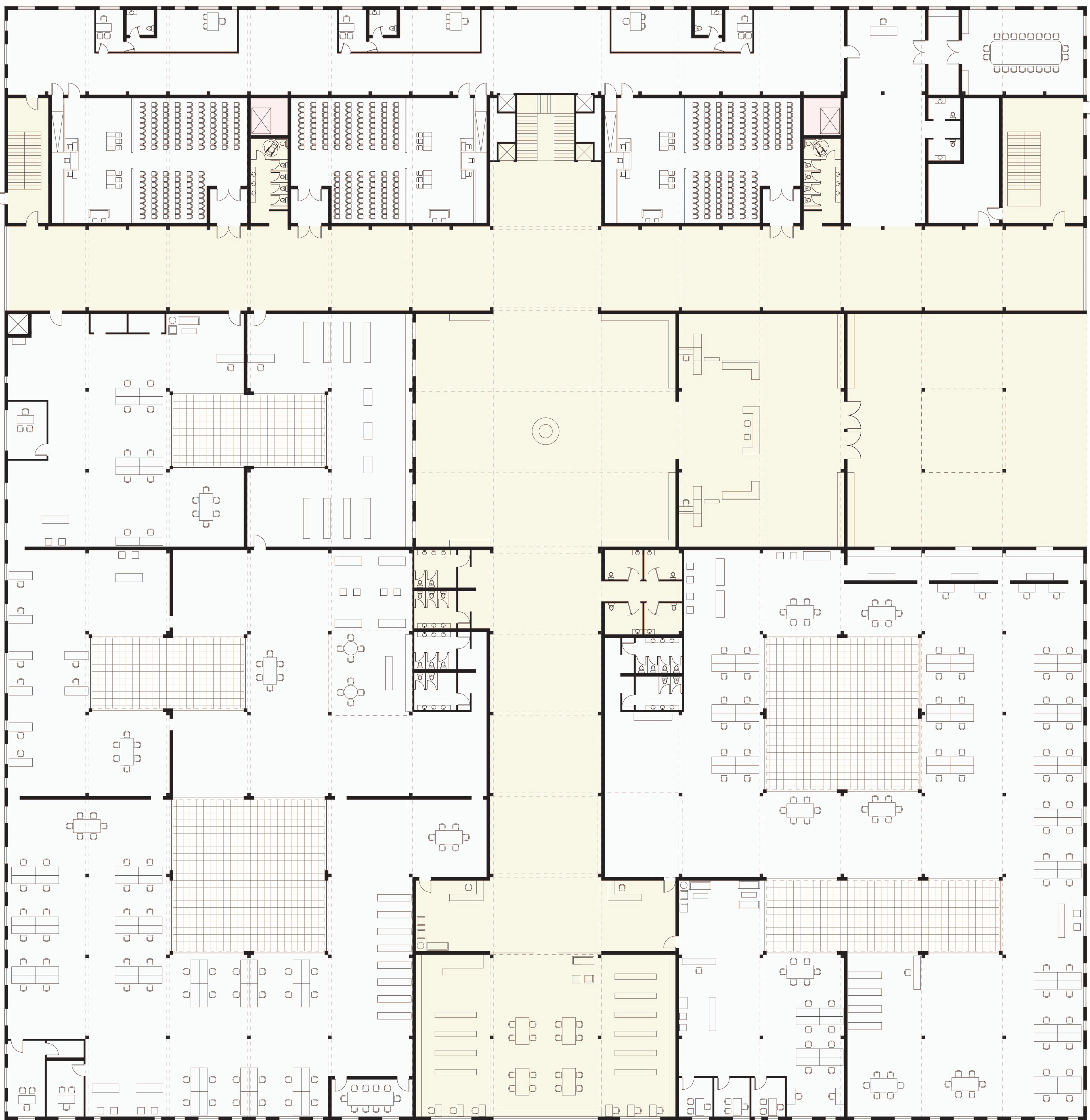

administration space + traffic court + library

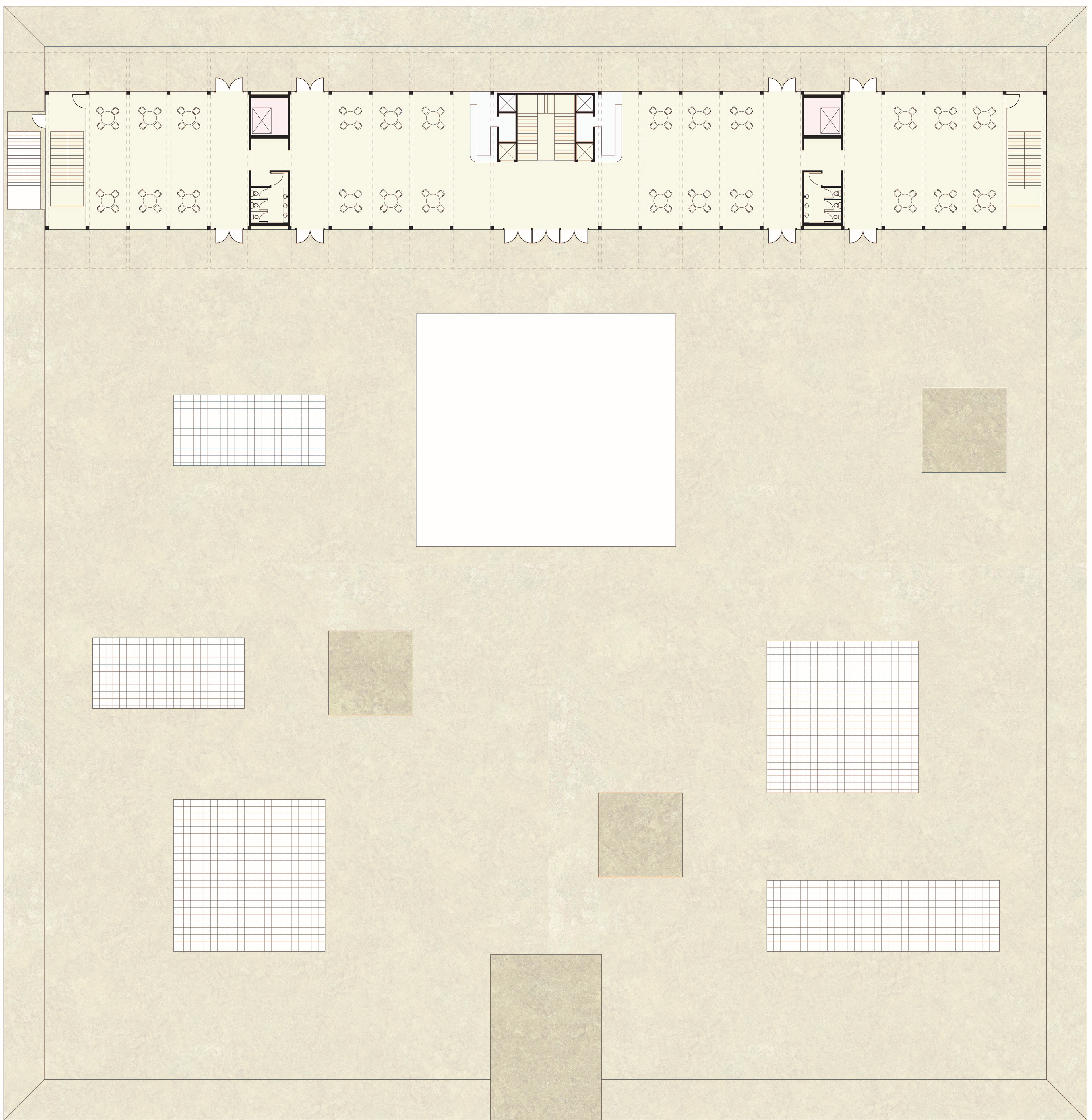

jury assembly + roof garden

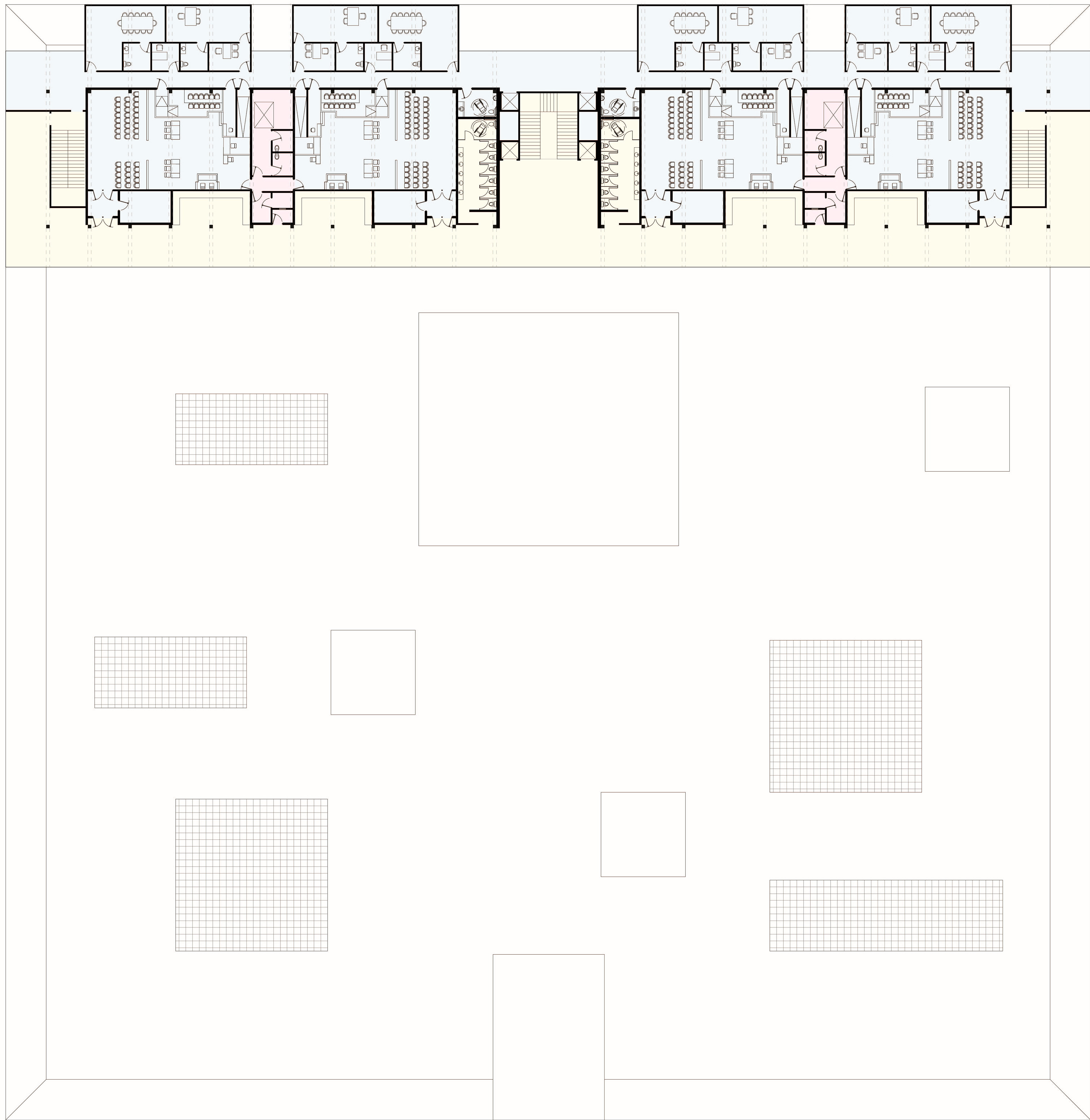

typical courtroom floor
typical courtroom floor
main lobby
the structural system combines 3 ply CLT cores and floorplates, with a glulam post and beam frame, supporting four CLT 'boxes' that house the courtrooms
structure

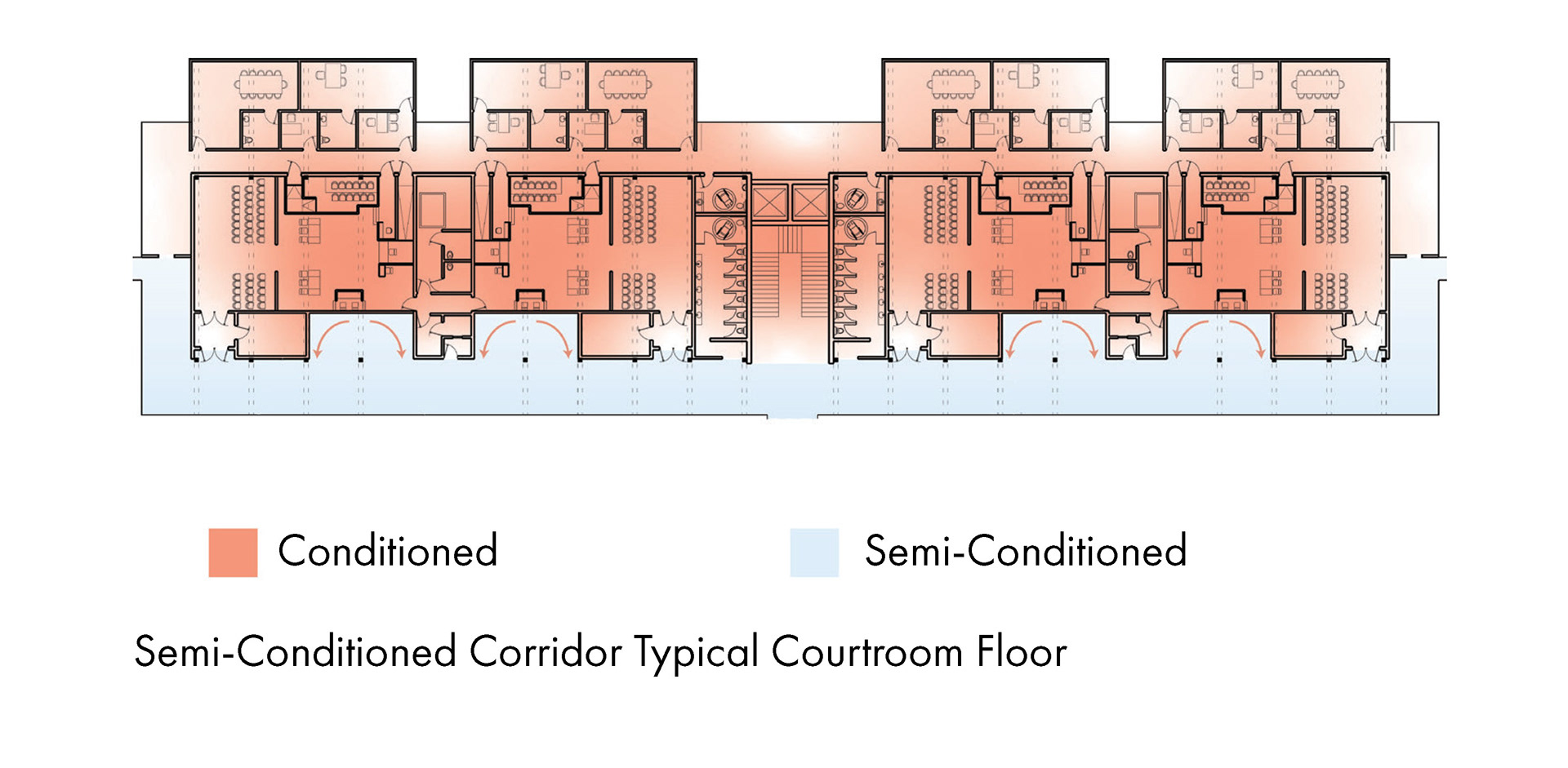

semi-conditioned corridor plan diagram

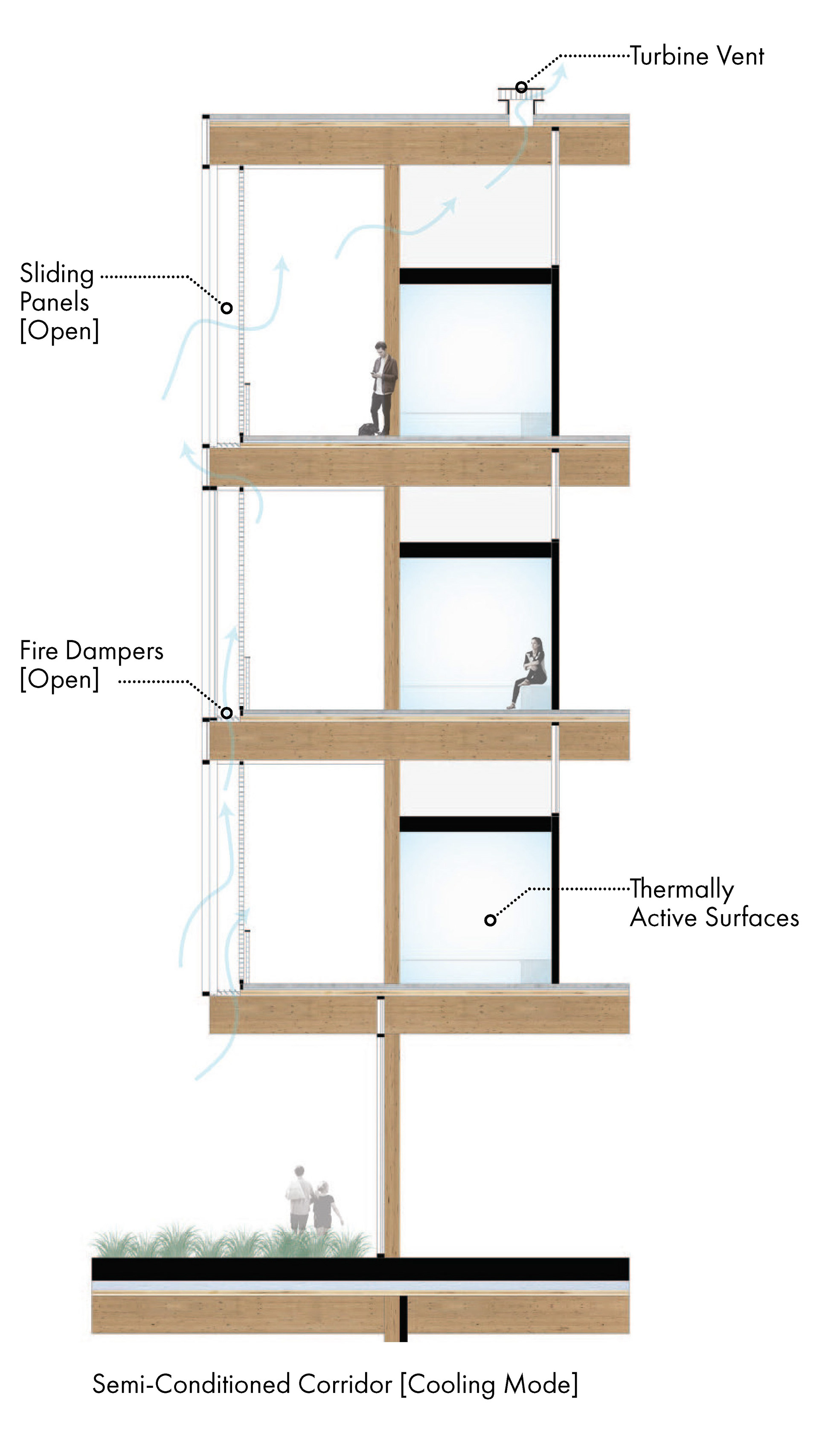

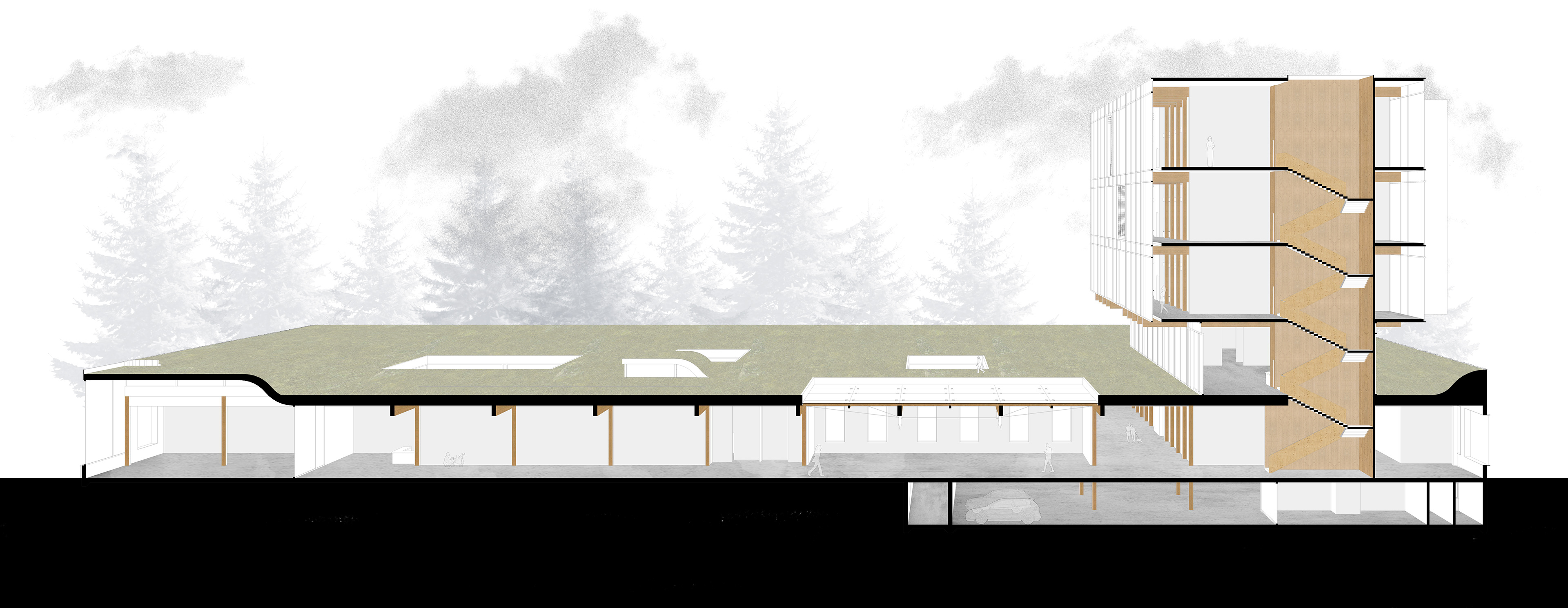

cooling season section
heating season section

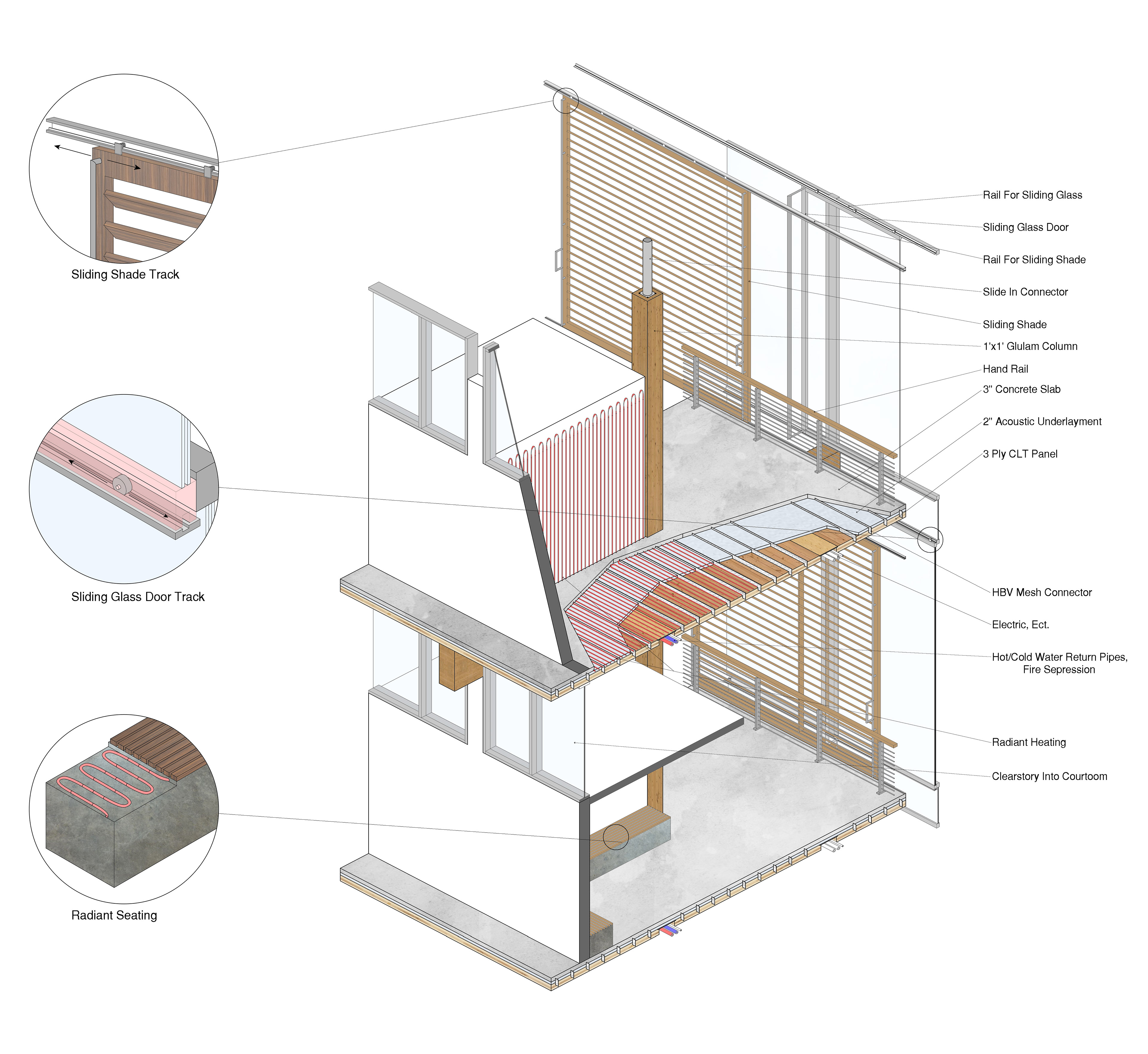

radiant alcove detail
